Magnesium alloy furnace accessories

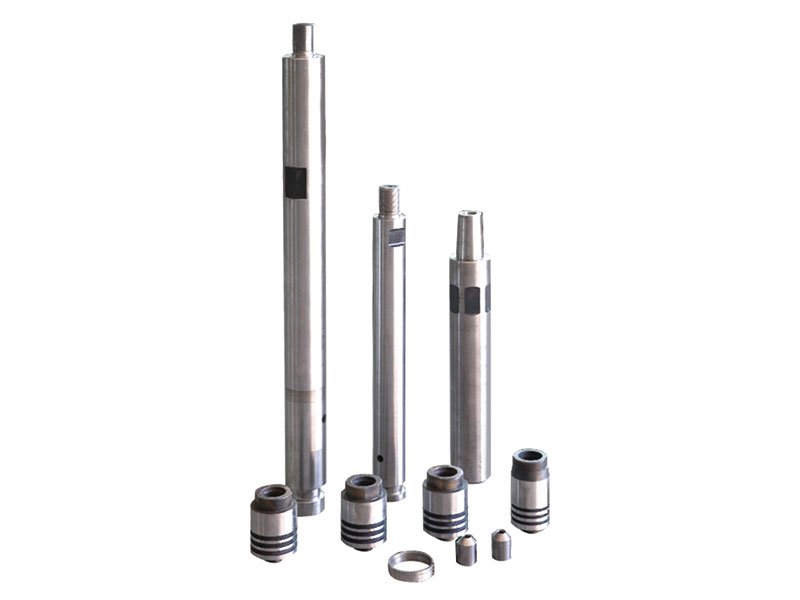

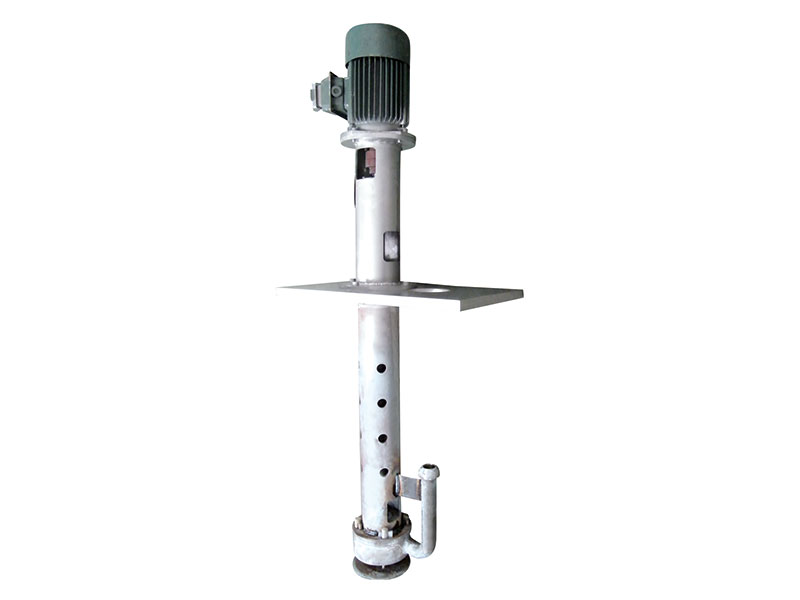

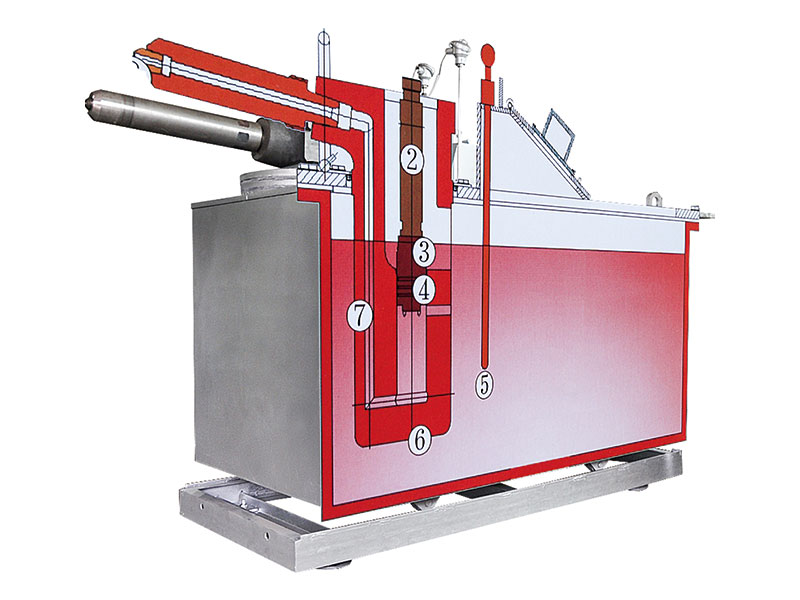

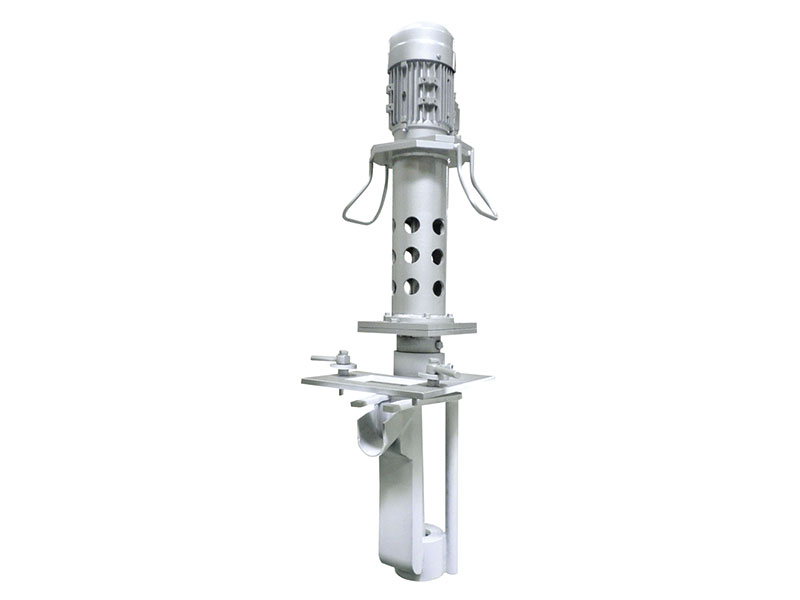

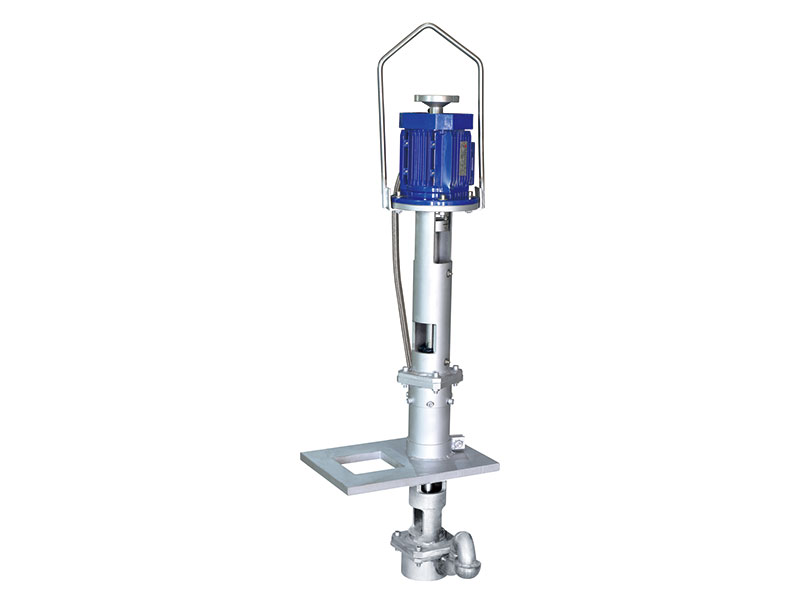

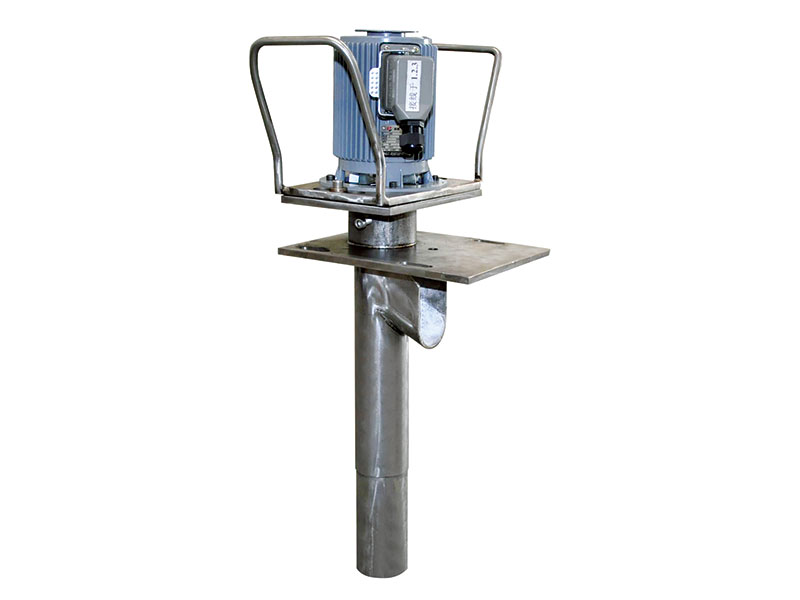

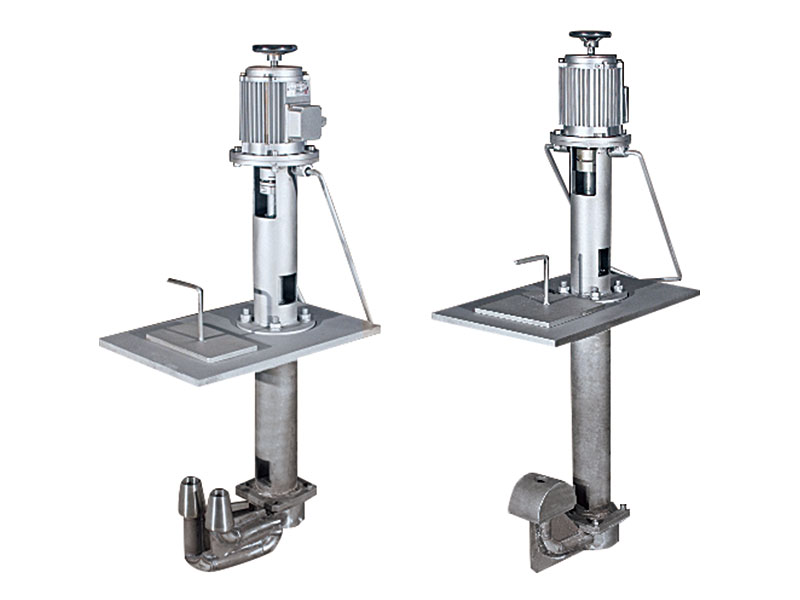

Main features of magnesium alloy dosing pump
- The quantitative pump uses a centrifugal mechanical dosing pump
- Independent control system, precise parameter control
- Precise control of pouring time and pouring speed
- Good repeatability and high quantitative accuracy
- High temperature resistance, corrosion resistance, no deformation, stable operation in molten magnesium alloy solution
- Removable tube for easy cleaning
- Vector servo motor drive, electrically blocked
Details
Magnesium alloy quantitative pump parameters
NO | Name | DOSING1 | DOSING2 | DOSING3 | DOSING4 |
1 | Pump power(KW) | 0.3 | 0.3 | 0.5 | 0.75 |
2 | Single cycle feed volume(kg) | 0.2~15 | 0.2~15 | 0.2~200 | 1.5~1000 |
3 | Net weight(KG) | 20 About 20 | 20 About 20 | 80 About 80 | 120 About 80 |
4 | Voltage frequency | 3*380V,50HZ | 3*380V,50HZ | 3*380V,50HZ | 3*380V,50HZ |
5 | Dosing pump impeller diameter(mm) | φ50 | φ50 | φ80 | φ80 |
6 | Quantitative accuracy | ±0.05 | ±0.05 | ±0.1 | ±0.1 |
7 | Working way | Centrifugal | Centrifugal | Centrifugal | Spinning type |

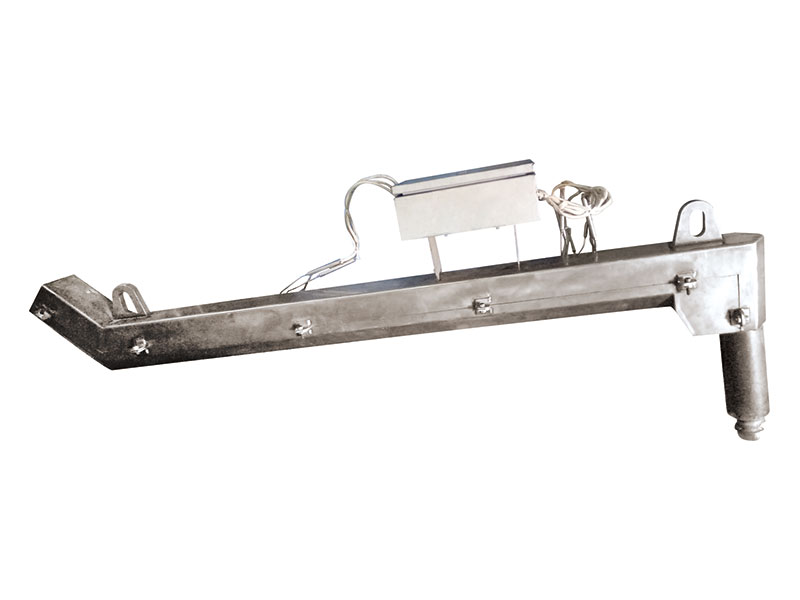

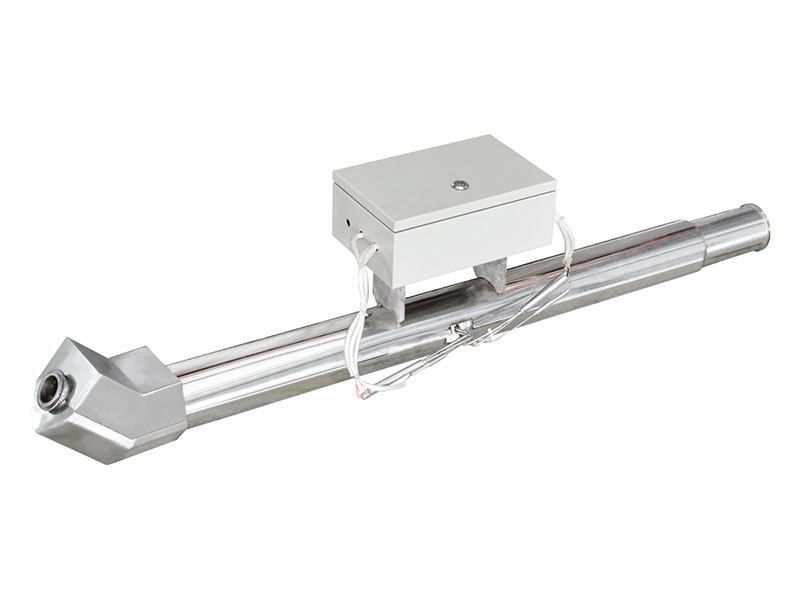

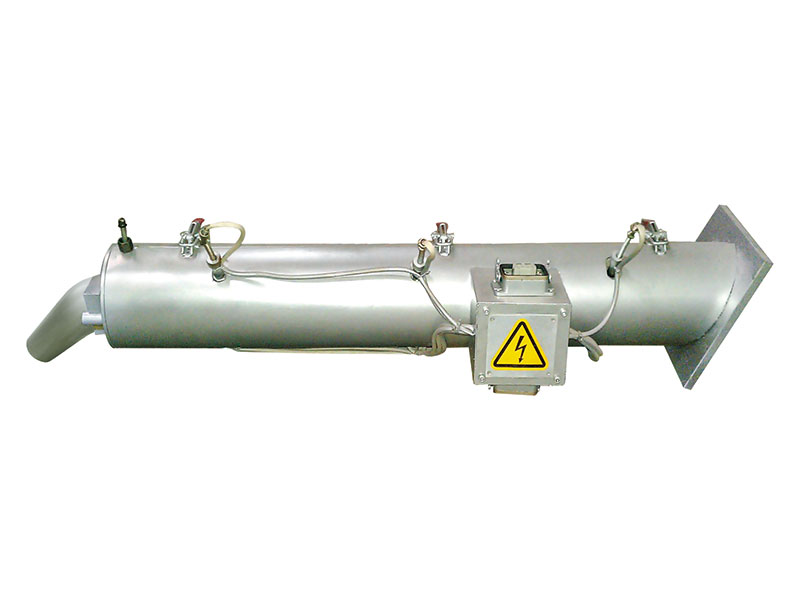

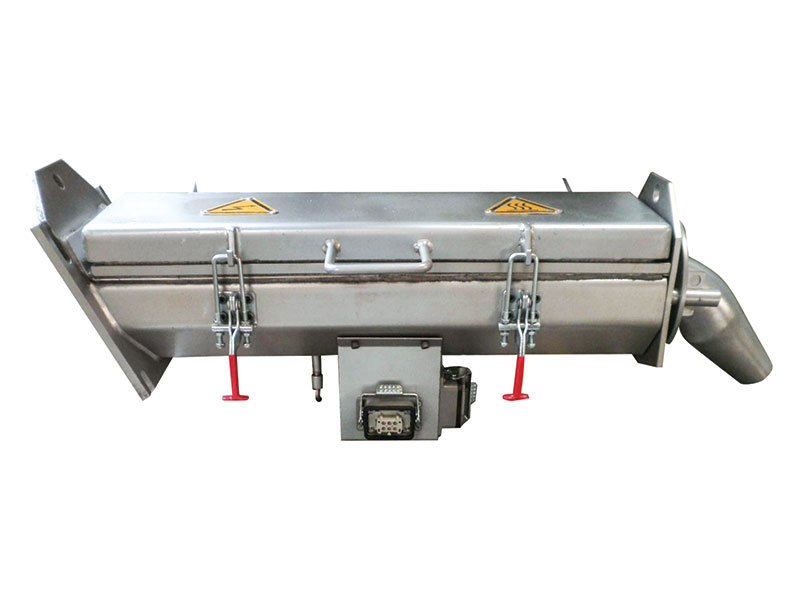

Main features of magnesium liquid transmission pipe:
- Control the temperature of the molten metal in sections to control the temperature change of the molten metal in real time
- High temperature stability
- High temperature resistance, corrosion resistance, no deformation
- Anti-oxidation, long service life
- Fully enclosed design, can open the cleaning transfer tube, convenient and practical
- Professional metal processing system to ensure the purity of molten metal, accurate transmission and safety

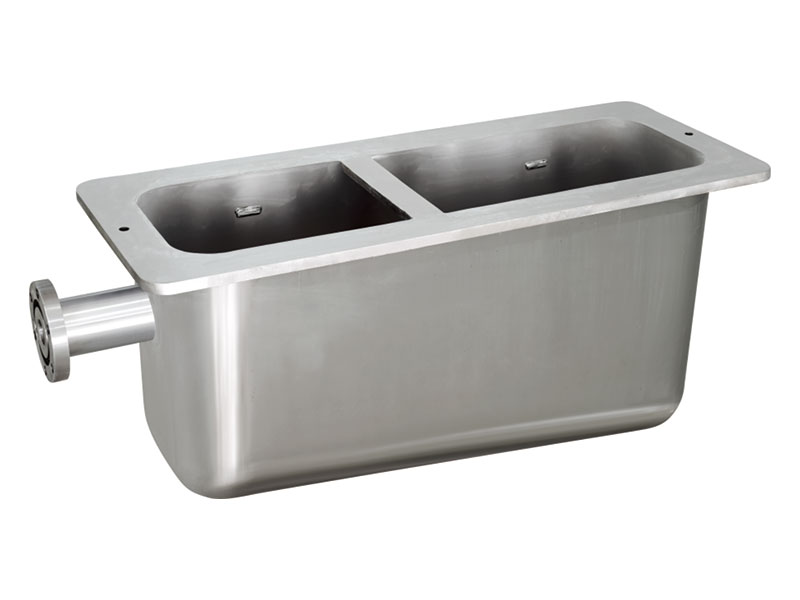

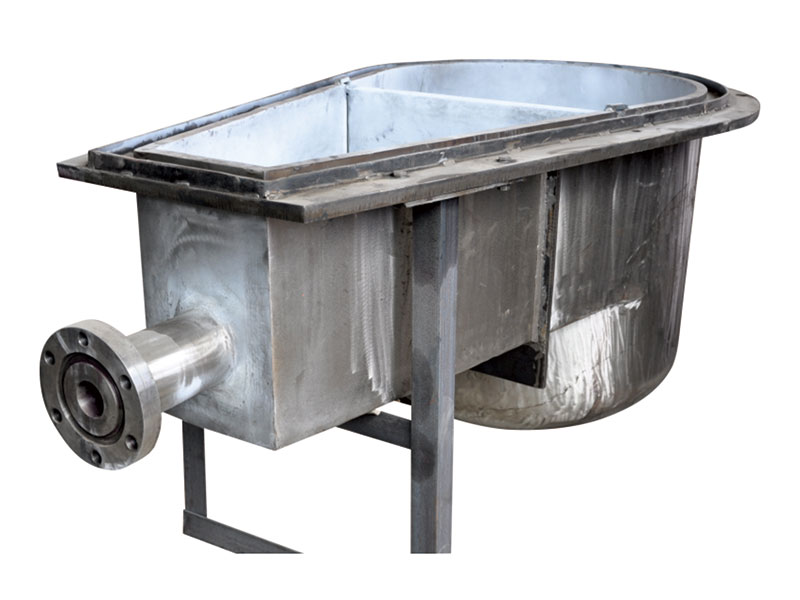

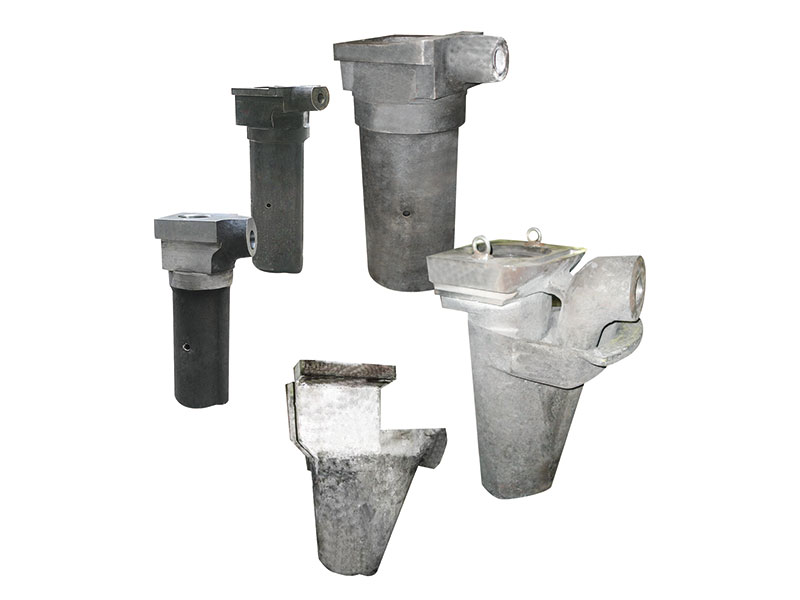

Crucible main features
- Made of special alloy steel, resistant to magnesium corrosion, high temperature
- The crucible material does not contain Ni and does not react with magnesium solution; the crucible is resistant to high temperatures of 600 to 800 ° C and can work stably.
- Crucible integral casting, no welding cracks and welding stress, so it can ensure stable and safe melting of molten metal
