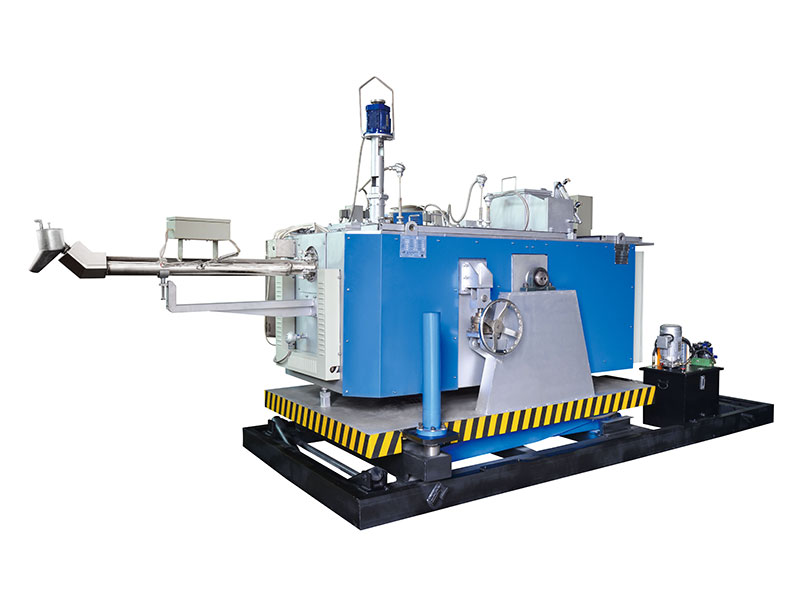

DMD-J magnesium alloy furnace
Structural system:
1) The concrete made of special composite steel plate does not pollute the magnesium liquid, has anti-corrosion structure inside, and has long service life.
2) Stainless steel casing and panel, corrosion resistant and high temperature resistant (patent: ZL201430063916.2)
3) Quantitative pump instantaneous flow design, maintenance time of more than 30 days (patent: ZL201220249304.8)
4) The transmission tube is made of special corrosion-resistant materials, which can be quickly changed, and the maintenance time is more than 30 days (patent: ZL201120347014.2)

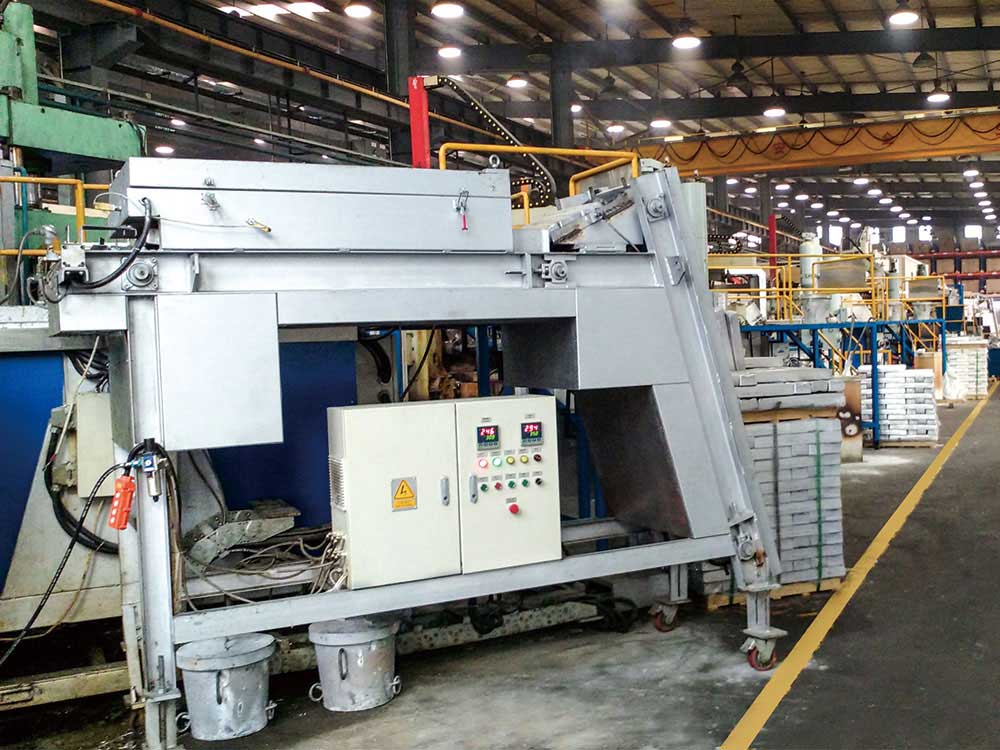

5) Preheater adopts clamping mechanism to make liquid level control stable and accurate feeding (patent: ZL201420137471.2)
6) Anti-blocking magnesium alloy elbow design (patent: ZL201120322157.8)
7) Perfect cleaning tool (patent: ZL201120323381.9)
Details

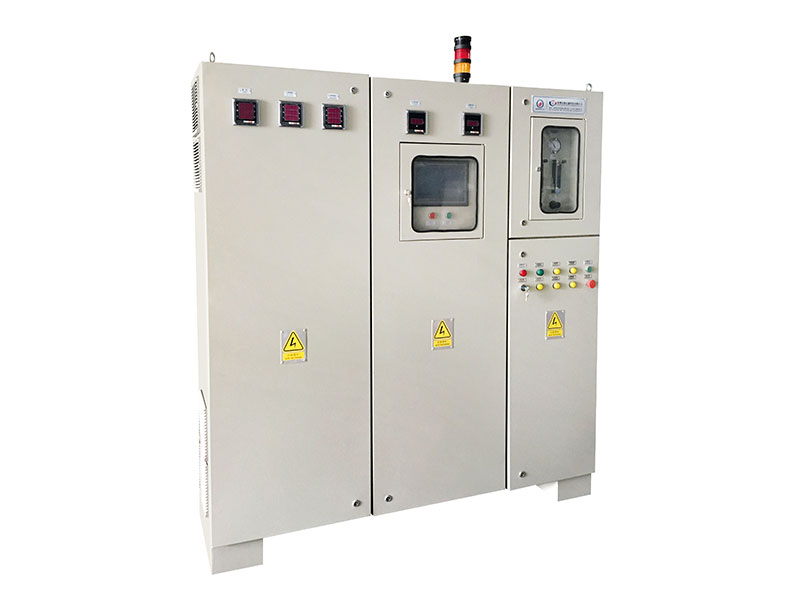

Control System:
1) Using Siemens PLC Control Center, 14' large color touch screen
2) Remote function can be realized
3) Import KOFLOC flow agent to control the flow of gas, save gas and protect crucible
Safety:
1) Gas undervoltage alarm, automatic power failure protection function (patent: ZL201120347026.5) (patent: ZL201120347028.4)
2) Full touch screen real-time monitoring and prompt troubleshooting guide (software copyright)
3) Electrical component protection function (patent design: ZL201120347030.1)

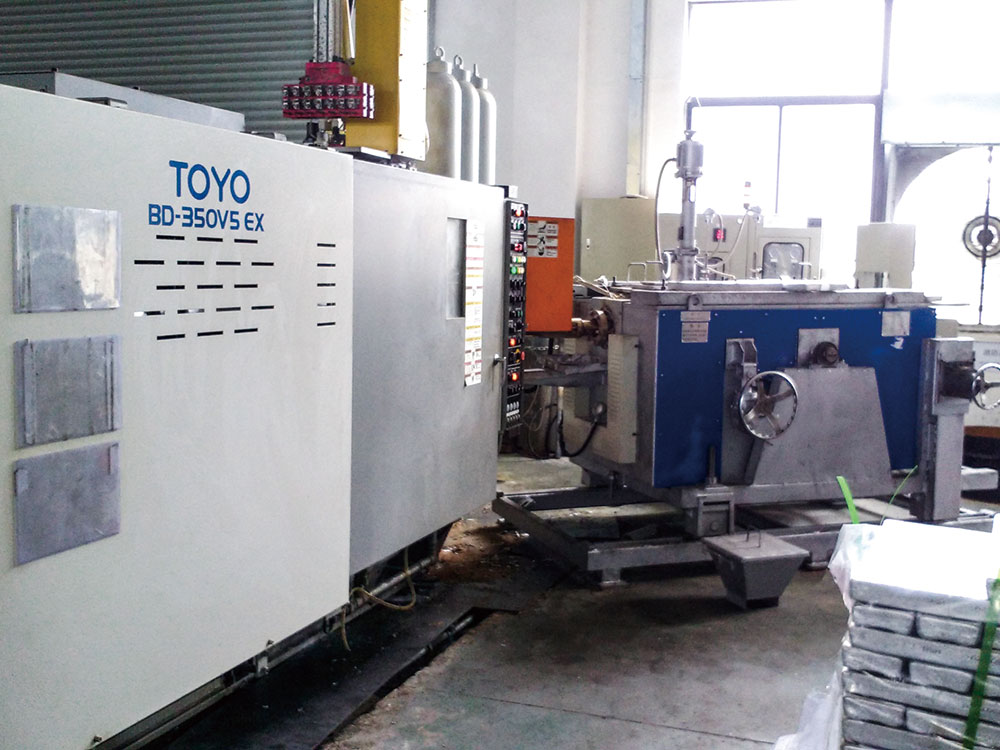

Magnesium alloy die-casting cold room machine furnace DMD-J series parameters
Paramater | Unit | DMD250J | DMD300J | DMD500J | DMD800J | DMD1000J | DMD1200J | DMD1500J |
Furnace size (L*W*H)
| Mm | 2000*800* 1000 | 2750*950* 1300 | 3060*950* 1300 | 3400*1000* 1900 | 3650*1450* 2350 | 3750*1550* 2450 | 3900*1550* 2550 |
Rated Volume | Kg | 250 | 350 | 550 | 800 | 1000 | 1200 | 1500 |
Melting rate | Kg/h | 80 | 100 | 200 | 300 | 350 | 400 | 450 |
Crucible structure | Double room
| |||||||
Power | V/Hz/Phase | 380-420V/50-60Hz/Three-phase Five-wire | ||||||
Rated power | KW | 60 | 75 | 120 | 180 | 220 | 260 | 300 |
Rated current | A | 90 | 120 | 180 | 270 | 330 | 390 | 450 |
Highest Furnace working temperature | ℃ | 850
| ||||||
Highest work temperature of magnesium liquid | ℃ | 710 | ||||||
provide gas temperature | ℃ | 350
| ||||||
Transportation pipe temperature | ℃ | 680-720 | ||||||
quantitative way | Centrifugal
| |||||||
Quantitative range | Kg | 0.2~5 | 0.2~5 | 0.2~5 | 0.5~10 | 0.5~10 | 0.5~20 | 0.5~20 |
(max.)Protection gas flow(max.) | L/min | 25 | 25 | 25 | 25 | 50 | 50 | 50 |
Lifting height of lifting frame | mm | 150 | 150 | 150 | 150 | 250 | 250 | 250 |
Lift moving distance | mm | 700 | 700 | 700 | 800 | 800 | 800 | 800 |
DIN45635-01-K1.2 noise | dB(A) | <85
| ||||||
Preheating power(max.) | KW | 20 | 20 | 20 | 30 | 30 | 60 | 60 |
Preheating temperature | ℃ | 150-250 | 150-250 | 150-250 | 150-250 | 150-250 | 150-250 | 150-250 |
Furnace weight | Kg | 1200 | 1500 | 2400 | 3000 | 4000 | 4500 | 5500 |
Suitable for die casting machine model | T | ≤300 | ≤400 | ≤650 | ≤900 | ≤1250 | ≤1250 | ≤1650 |
Special note: The company reserves the right of final interpretation of the above product pictures and parameters!
